How the GeoLock Wall Anchor System Works

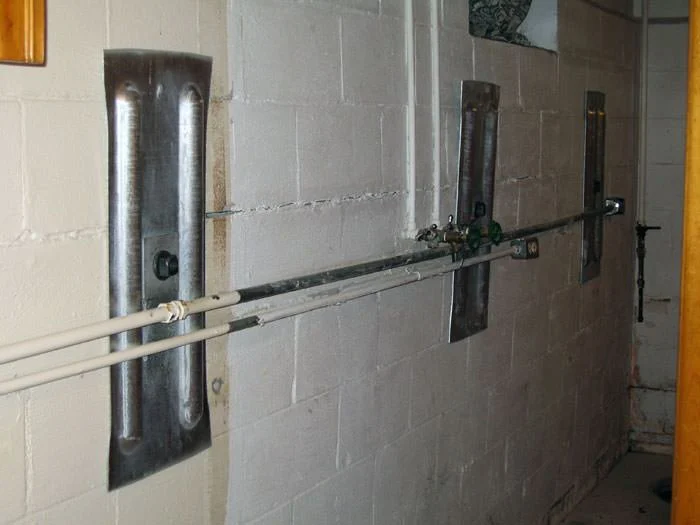

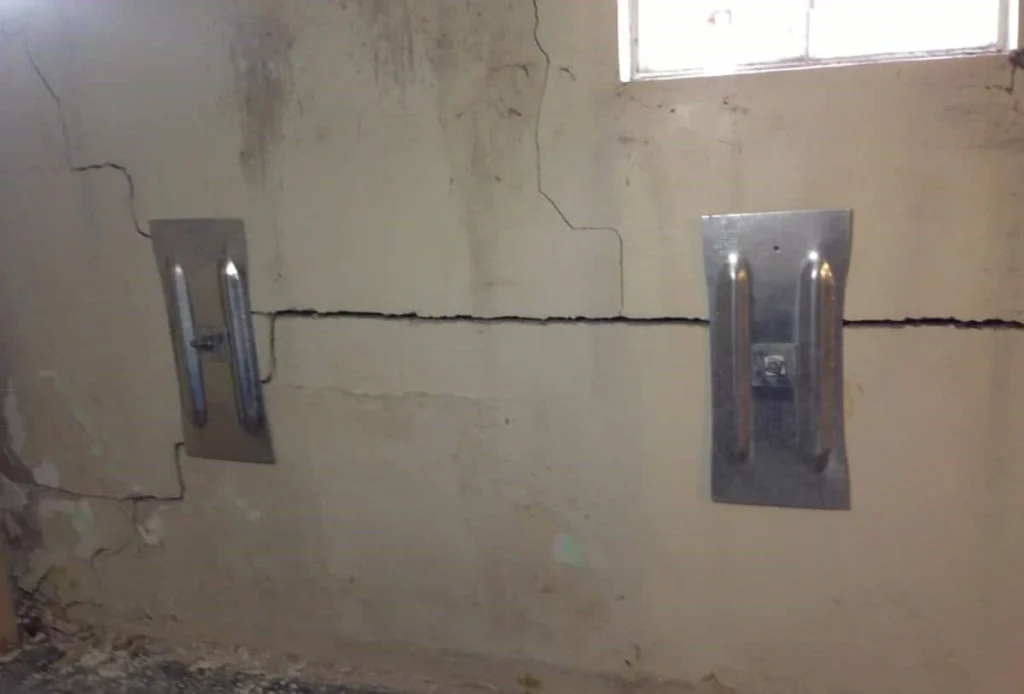

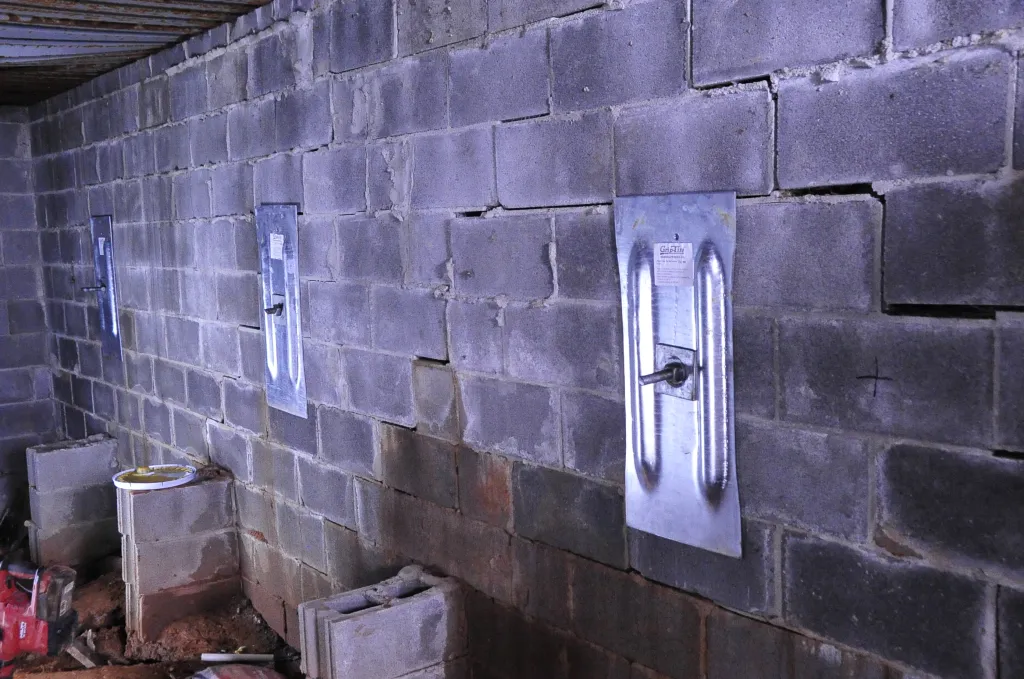

The GeoLock® Wall Anchor System is a highly effective structural solution for permanently stabilizing bowing, tilting, or cracking foundation walls. In areas like Union City, TN, where soil pressure and water saturation cause foundation walls to buckle inward, the GeoLock system offers a deep-soil anchoring method that pulls the wall back and holds it firmly in place.
Unlike surface treatments or interior-only reinforcements, GeoLock anchors reach into stable soil away from the foundation, where earth pressure is neutral. By connecting this stable anchor point to a wall plate inside your basement or crawl space, we can counteract lateral soil pressure and gradually straighten the wall over time.
How GeoLock Anchors Are Installed:
- Soil Analysis and Wall Measurement
We inspect the foundation walls for horizontal cracks, bulging, and inward displacement, then determine optimal anchor placement based on structural stress and exterior access. - Exterior Anchor Placement
A trench is excavated in the yard 10–15 feet from the foundation where stable soil is found. - Drill Through Foundation Wall
A small hole is drilled through the wall to insert a steel rod, connecting the inside plate to the external anchor. - Secure Anchors and Wall Plates
The external anchor is installed and buried in the soil, while a galvanized steel wall plate is bolted inside against the wall. - Tensioning and Adjustment
The system is tightened to stabilize the wall immediately and can be re-tightened periodically to help straighten the wall over time.
The result is a long-term stabilization system that protects your foundation walls from further damage and can improve wall alignment safely.
Our Services
- Concrete Slab Foundation Repair
- Pier and Beam or Block and Base Foundation Repair
- Basement Wall Repair
- Elevated Pilings or Stilts Foundation Repair
- Basement Waterproofing
- Cracked Wall / Structural Repair
- House Raising / Lifting
- Polyurethane Foam Injection
- Commercial Foundation Repair
- Steel Push Pier Installation
- Slab Pier Installation
- Helical Pier Installation
- Garage Lintel Repair
- Foundation Wall Repair
- EverBrace™ Wall Restoration System
- CarbonArmor Wall Stabilization
- GeoLock Wall Anchor System
- PowerBrace Foundation Wall Support
- House Leveling
- Pre-Construction Pier Installation
Benefits of the GeoLock Wall Anchor System
The GeoLock system is ideal for homeowners who need to stop wall movement and gradually correct structural distortion caused by soil pressure or poor drainage.
Key Advantages of GeoLock:
- Stops Bowing and Inward Wall Movement
Anchors immediately stabilize failing walls and prevent further inward shifting. - Gradual Straightening
With routine adjustments, the wall can be returned closer to its original vertical position. - Works in Almost Any Soil Condition
Effective in clay, sand, and even fill soils—as long as stable ground exists 10–15 feet from the wall. - Minimal Disruption
Only small access holes are needed. Landscaping can be restored easily. - Non-Invasive to Interior Space
Wall plates are compact and low-profile—easy to cover with wall panels or paint. - Permanent, Engineered Solution
Manufactured from galvanized steel, GeoLock anchors are built to resist corrosion and last for decades. - Backed by Warranty
Most systems include transferable warranties for peace of mind and resale value.
The GeoLock system provides a safe, proven alternative to wall replacement, saving you time and money while restoring structural safety.
What to Expect During GeoLock Installation
At Union City Foundation Repair, we ensure the entire GeoLock process is efficient, respectful of your home, and built for lasting performance. Most installations are completed in 1 to 2 days.
Our Installation Process:
- Foundation Wall Evaluation
We measure wall deflection, analyze soil pressure, and determine whether GeoLock is the most suitable stabilization system. - Anchor Site Selection
We map out anchor locations in your yard and confirm no underground utilities interfere. - Exterior Excavation
Small holes are dug 10–15 feet from your foundation for anchor plate placement. - Interior Access and Drilling
A 1″ diameter hole is drilled through the wall at each anchor point, and a steel rod is inserted to connect both sides. - Anchor and Plate Assembly
Galvanized steel wall plates are secured on the inside; anchor plates are positioned and buried outside. - Initial Tensioning
The system is tightened immediately, stabilizing the wall and halting further movement. - Final Inspection and Clean-Up
The soil is replaced, and all hardware is checked. You can opt for decorative covers over the interior plates if desired. - Follow-Up Adjustments (Optional)
In the months following installation, we may return to re-tension the system and gradually straighten the wall further.
The entire system is designed to discreetly support your foundation without the need for major demolition or excavation.
Cost of GeoLock Wall Anchor System in Union City, TN
GeoLock anchors are an affordable and highly effective way to stabilize failing walls, especially when compared to full wall replacement or exterior excavation.
Average Pricing:
- Per Anchor Installed: $800 – $1,200
- Standard Wall (4–8 Anchors): $3,500 – $9,000
- Complex Jobs (multiple walls, hard access): $10,000+
Cost Drivers Include:
- Wall length and number of anchors needed
- Severity of bowing or tilting
- Soil type and ease of excavation
- Landscaping or concrete that needs to be disturbed
- Optional adjustments or finishing after installation
We offer free inspections and detailed estimates so you’ll know exactly what to expect. We also provide financing options to help you start the project right away.
Why Choose Us for GeoLock Wall Anchor Installation
Union City Foundation Repair has been providing advanced foundation solutions for over 30 years. We are trained and experienced in installing the GeoLock Wall Anchor System, and we understand the specific challenges posed by Union City’s soil and climate.
Why We’re the Top Choice for Wall Anchors:
- Specialists in cracked, bowing, and leaning wall repair
- Factory-trained installers of GeoLock anchor systems
- Deep understanding of local soil movement and hydrostatic pressure
- Clean, efficient installation with minimal disruption
- Transparent pricing and no high-pressure sales tactics
- Flexible financing and long-term warranties
- Backed by trusted reputation and BBB accreditation
When your foundation wall shows signs of distress, we provide solutions that restore structure and confidence—backed by proven technology and professional installation.
FAQs About GeoLock Wall Anchor System
How much bowing is too much for GeoLock?
GeoLock anchors are effective for walls bowing inward up to 3 inches. For more severe displacement, systems like EverBrace may be recommended.
Can the wall be straightened after anchors are installed?
Yes. Over time, with gradual re-tensioning, walls can often be restored closer to plumb—especially if caught early.
Do wall anchors cause damage to my yard?
Only minor excavation is needed. Holes are typically small and landscaping is restored after installation.
What if there are trees or concrete in the way?
If external access is blocked, alternative systems like interior braces or carbon fiber may be suggested instead.
Looking for GeoLock Wall Anchor System Near Me?
If you’re searching for GeoLock Wall Anchor System near me in Union City, TN, Union City Foundation Repair is your trusted local expert. We stabilize bowing and tilting foundation walls with industry-leading anchor technology designed for long-term safety and support. Call 731-792-4200 today to book your free foundation wall inspection and get a permanent solution for your home’s structural health.
